GasStudio_example.ipynb

[1]:

%load_ext autoreload
%autoreload 2
import numpy as np
import os
import matplotlib.pyplot as plt
import matplotlib

%matplotlib inline


from abg_python.galaxy.gal_utils import Galaxy
from abg_python.all_utils import filterDictionary

from firestudio.studios.gas_studio import GasStudio

[2]:

matplotlib.rcParams['figure.dpi'] = 150

Create an abg_python\(^\mathrm{TM}\) Galaxy instance

[3]:

snapdir = "/scratch/projects/xsede/GalaxiesOnFIRE/metal_diffusion/m12i_res7100/output"
snapnum = 600
galaxy = Galaxy(
    'm12i_res7100',
    snapdir,
    600,
    datadir='/scratch/04210/tg835099/data/metal_diffusion')

Couldn't find a metadata file... for
 Metadata object at /scratch/04210/tg835099/data/metal_diffusion/m12i_res7100/metadata/meta_Galaxy_600.hdf5

Locate the main halo, center our coordinates, and rotate to be face-on.

[4]:

galaxy.extractMainHalo()

Using the saved sub-snapshots
Successfully loaded a pre-extracted subsnap
Reorienting...
Done.
extract_halo_inner(m12i_res7100_md at 600,){'orient_stars': True} 17.16 s elapsed
Snapshot memory free

[4]:

(14.389217379832706,
 True,
 2.5881896910344975,
 -2.7838931910077562,
 35229529313569.195,
 44642473899919.32,
 268.00569800569804,
 2.877843475966541)

Make a simple 2D histogram to give us an idea of what to expect

We’ll restrict our plot to a 20 kpc cube.

[5]:

disk_mask = np.ones(galaxy.sub_snap['Masses'].size)
xs,ys,zs = galaxy.sub_snap['Coordinates'].T

disk_mask = (np.abs(xs) < 20) & (np.abs(ys) < 20) & (np.abs(zs) < 20)

Let’s do a mass-weighted temperature histogram

[6]:

from matplotlib.colors import LogNorm
h_mt,xedges,yedges = np.histogram2d(
    xs[disk_mask],
    ys[disk_mask],
    bins=1200,
    weights=galaxy.sub_snap['Masses'][disk_mask]*galaxy.sub_snap['Temperature'][disk_mask])

h_m,xedges,yedges = np.histogram2d(
    xs[disk_mask],
    ys[disk_mask],
    bins=1200,
    weights=galaxy.sub_snap['Masses'][disk_mask])

plt.imshow((h_mt/h_m).T,norm=LogNorm(vmin=100,vmax=1e7),origin='lower')
plt.gca().set_aspect(1)
plt.colorbar(label='T (K)')

/home1/04210/tg835099/work/miniconda3/envs/python3/lib/python3.6/site-packages/ipykernel_launcher.py:14: RuntimeWarning: divide by zero encountered in true_divide

/home1/04210/tg835099/work/miniconda3/envs/python3/lib/python3.6/site-packages/ipykernel_launcher.py:14: RuntimeWarning: invalid value encountered in true_divide

[6]:

<matplotlib.colorbar.Colorbar at 0x2ba32815d748>

/home1/04210/tg835099/work/miniconda3/envs/python3/lib/python3.6/site-packages/matplotlib/colors.py:1110: RuntimeWarning: invalid value encountered in less_equal
  mask |= resdat <= 0

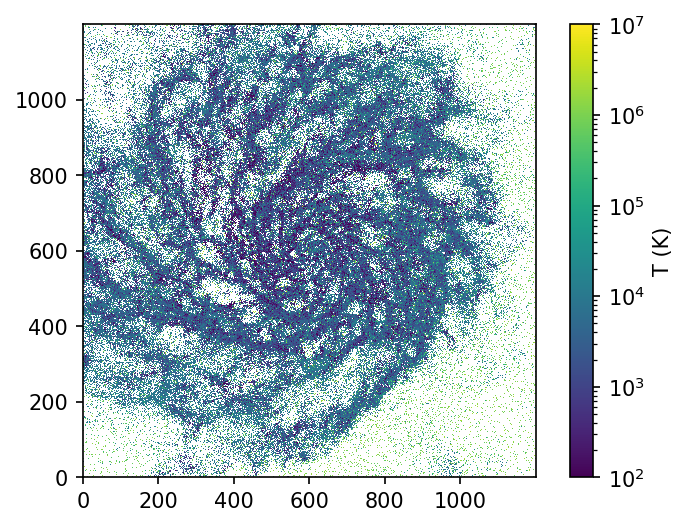

../_images/tutorials_GasStudio_example_11_3.png

Creating the GasStudio class instance

Create the GasStudio instance. Any keyword argument that’s used by set_ImageParams can be passed into the initialization call. Those keyword arguments, and their descriptions, can be found here.

[7]:

## let's put the FIREstudio projections into a sub-directory of our Galaxy class instance
studio_datadir = os.path.join(os.path.dirname(galaxy.datadir),'firestudio')

## initialize the GasStudio instance
my_gasStudio = GasStudio(
    studio_datadir,
    galaxy.snapnum,
    studio_datadir,
    gas_snapdict=galaxy.sub_snap, ## pass in snapshot dictionary
    star_snapdict=galaxy.sub_star_snap, ## pass in snapshot dictionary
    )

setting use_colorbar to default value of: False
setting cbar_label to default value of:
setting cbar_logspace to default value of: True
setting snapnum to user value of: 600
setting sim_name to user value of: /scratch/04210/tg835099/data/metal_diffusion/firestudio
setting frame_half_width to default value of: 15
setting frame_half_thickness to default value of: 15
setting frame_center to default value of: [0. 0. 0.]
setting theta to default value of: 0
setting phi to default value of: 0
setting psi to default value of: 0
setting aspect_ratio to default value of: 1
setting pixels to default value of: 1200
setting figure_label to default value of:
setting scale_bar to default value of: True
setting scale_line_length to default value of: 5
setting noaxis to default value of: True
setting savefig to default value of: None
setting fontsize to default value of: 12
setting snapdir to default value of: None

Make a mass-weighted Temperature map by declaring the weights to be the snapshot dictionary key ‘Masses’ and the quantity to be the snapshot dictionary key ‘Temperature.’ These keys are mandatory, but one can avoid having to add things to the snapshot dictionary by passing in the optional keyword arguments weights and quantities.

By setting min_quantity and max_quantity by keyword argument we specify that we want to plot the quantity of interest, in this case the Temperature. We will return to this point later on.

The quantity_adjustment_function is applied after projection and is useful for changing the units, or to take the log in the this case. The min/max_quantity applies to the post-adjusted map.

After the first call the massMap and massWeightedTemperatureMap will be cached so future calls (for adjusting image properties, e.g. colorbar limits) will be much faster than the first.

[8]:

## main call to render
ax, pixel_map =  my_gasStudio.render(
    weight_name='Masses',
    quantity_name='Temperature',
    min_quantity=2,
    max_quantity=7,
    quantity_adjustment_function=np.log10)

cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta0.00_phi0.00_psi0.00_aspect1.00 inner_weight_along_los(GasStudio instance, None, 'Masses', None, 'Temperature'){} success!
min_Temperature =  2
max_Temperature =  7
Image range (Temperature):  2.9147637 6.6890955
Image range (8bit):  46.652946 239.14388

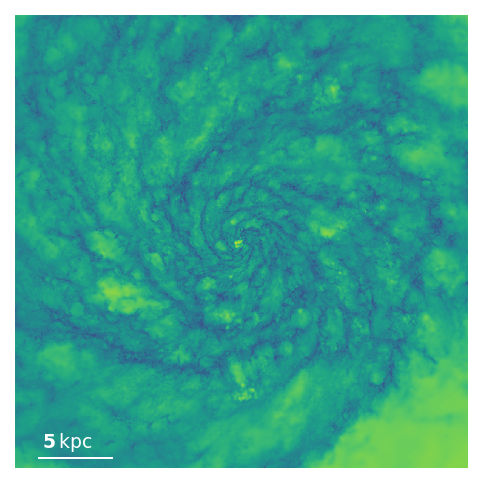

../_images/tutorials_GasStudio_example_16_1.png

Let’s add a colorbar and a colorbar label. These properties are specified as keyword arguments to set_ImageParams.

[9]:

my_gasStudio.set_ImageParams(
    use_colorbar=True,
    cbar_label='T (K)')

ax, pixel_map = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='Temperature',
    min_quantity=2,
    max_quantity=7,
    quantity_adjustment_function=np.log10)

setting use_colorbar to user value of: True
setting cbar_label to user value of: T (K)
cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta0.00_phi0.00_psi0.00_aspect1.00 inner_weight_along_los(GasStudio instance, None, 'Masses', None, 'Temperature'){} success!
min_Temperature =  2
max_Temperature =  7
Image range (Temperature):  2.9147637 6.6890955
Image range (8bit):  46.652946 239.14388

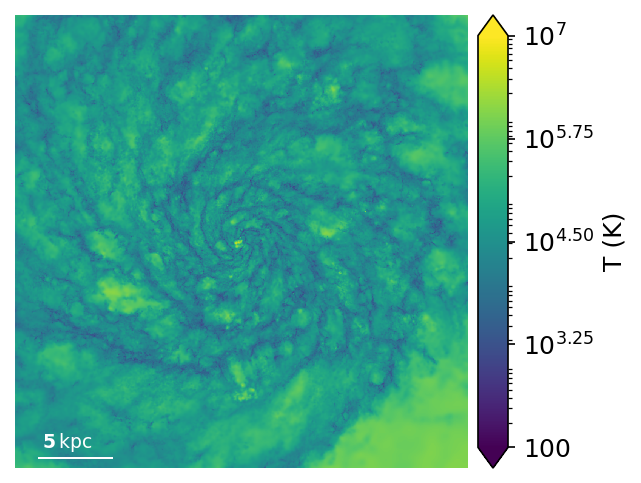

../_images/tutorials_GasStudio_example_18_1.png

That’s looking good! But notice the printed output above:

Image range (Temperature): 2.9147222 6.6890903

Image range (8bit): 46.650833 239.1436

This is telling us that we’re not efficiently using the full 256 value color range. Let’s change that by passing in min_quantity=3 and max_quantity=6.5

[10]:

ax, pixel_map = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='Temperature',
    min_quantity=3,
    max_quantity=6.5,
    quantity_adjustment_function=np.log10)

cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta0.00_phi0.00_psi0.00_aspect1.00 inner_weight_along_los(GasStudio instance, None, 'Masses', None, 'Temperature'){} success!
min_Temperature =  3
max_Temperature =  6.5
Image range (Temperature):  2.9147637 6.6890955
Image range (8bit):  0.0 255.0

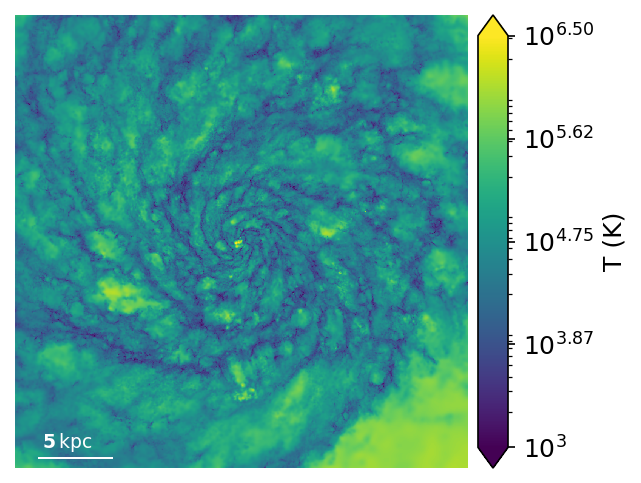

../_images/tutorials_GasStudio_example_20_1.png

[11]:

my_gasStudio.set_ImageParams(
    theta=90,
    aspect_ratio=1,
    scale_line_length=10)

ax, pixel_map = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='Temperature',
    min_quantity=3,
    max_quantity=6.5,
    quantity_adjustment_function=np.log10)

setting theta to user value of: 90
setting aspect_ratio to user value of: 1
setting scale_line_length to user value of: 10
cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta90.00_phi0.00_psi0.00_aspect1.00 inner_weight_along_los(GasStudio instance, None, 'Masses', None, 'Temperature'){} success!
min_Temperature =  3
max_Temperature =  6.5
Image range (Temperature):  2.7982035 6.428994
Image range (8bit):  0.0 249.82672

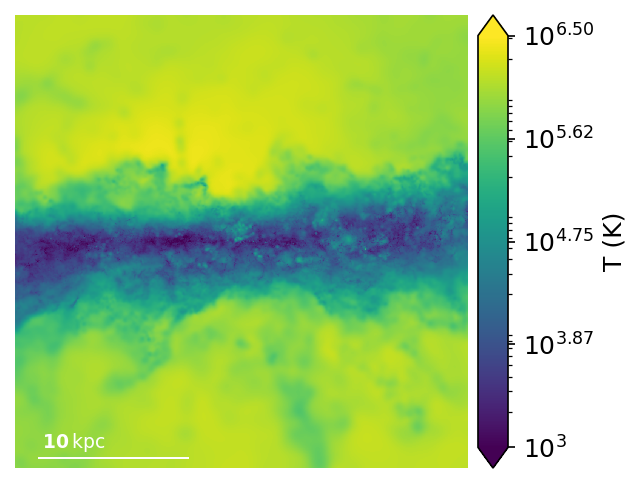

../_images/tutorials_GasStudio_example_21_1.png

[12]:

my_gasStudio.set_ImageParams(
    aspect_ratio=0.5)

ax, pixel_map = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='Temperature',
    min_quantity=3,
    max_quantity=6.5,
    quantity_adjustment_function=np.log10)

setting aspect_ratio to user value of: 0.5
cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta90.00_phi0.00_psi0.00_aspect0.50 inner_weight_along_los(GasStudio instance, None, 'Masses', None, 'Temperature'){} success!
min_Temperature =  3
max_Temperature =  6.5
Image range (Temperature):  2.7982032 6.4289937
Image range (8bit):  0.0 249.82669

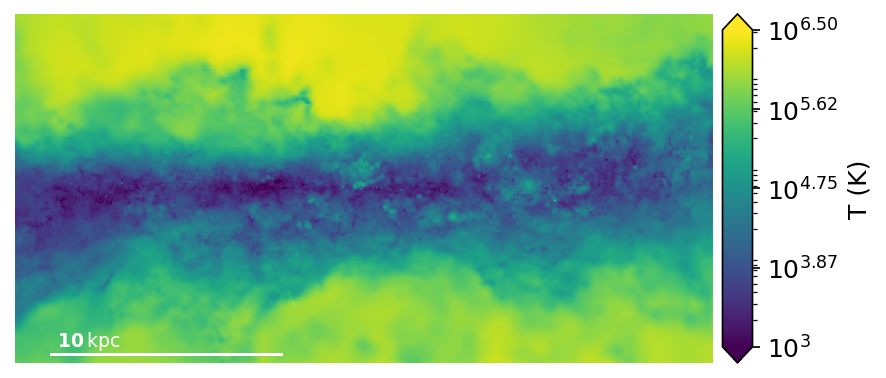

../_images/tutorials_GasStudio_example_22_1.png

[13]:

my_gasStudio.set_ImageParams(
    aspect_ratio=0.25)

ax, pixel_map = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='Temperature',
    min_quantity=3,
    max_quantity=6.5,
    quantity_adjustment_function=np.log10)

setting aspect_ratio to user value of: 0.25
cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta90.00_phi0.00_psi0.00_aspect0.25 inner_weight_along_los(GasStudio instance, None, 'Masses', None, 'Temperature'){} success!
min_Temperature =  3
max_Temperature =  6.5
Image range (Temperature):  2.7982035 6.379408
Image range (8bit):  0.0 246.214

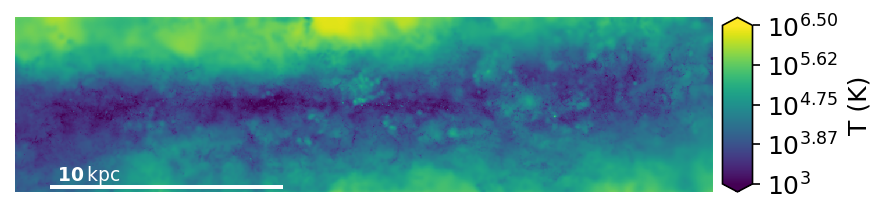

../_images/tutorials_GasStudio_example_23_1.png

Plotting weights instead of quantities

Let’s flip the script and instead plot the mass map, rather than the Temperature map. This is easily done by instead passing in min_weight and max_weight rather than min_quantity and max_quantity. We’ll also update the image parameters to change the colorbar label.

In this case, the weight_adjustment_function is used to convert between the output map which is the total deposited mass along the LoS in the pixel to a surface density using the special attribute my_gasStudio.Acell, which is the area of each pixel in the length units of the coordinates.

We’ll also change the colormap for the thrill of it by passing it as a keyword argument to render.

[14]:

my_gasStudio.set_ImageParams(
    use_colorbar=True,
    cbar_label='$\Sigma_g$ (Msun pc$^{-2}$)',
    scale_line_length=10,
    cbar_logspace=True,
    theta=0,
    aspect_ratio=1)

pixels = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='Temperature',
#    min_quantity=3,
#    max_quantity=6.5,
    quantity_adjustment_function=np.log10,
    min_weight=-0.5,
    max_weight=3,
    weight_adjustment_function=lambda x: np.log10(x/my_gasStudio.Acell) + 10 - 6, ## msun/pc^2
    cmap='afmhot')

setting use_colorbar to user value of: True
setting cbar_label to user value of: $\Sigma_g$ (Msun pc$^{-2}$)
setting cbar_logspace to user value of: True
setting scale_line_length to user value of: 10
setting theta to user value of: 0
setting aspect_ratio to user value of: 1
cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta0.00_phi0.00_psi0.00_aspect1.00 inner_weight_along_los(GasStudio instance, None, 'Masses', None, 'Temperature'){} success!
min_Masses =  -0.5
max_Masses =  3
Image range (Masses):  -0.965189 3.096508
Image range (8bit):  0.0 255.0

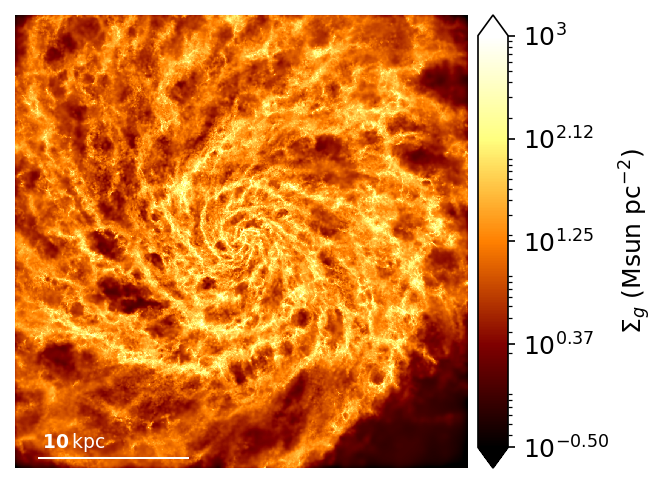

../_images/tutorials_GasStudio_example_26_1.png

Computing a derived quantity and passing it into the projection routine

One can also compute an arbitrary quantity for each particle and project it along the line-of-sight. Let’s do the cylindrical radial velocity, for example.

[15]:

## compute the cylindrical radial velocity by dotting the velocities with their
##  corresponding cylindrical radial unit vectors
rhats = galaxy.sub_snap['Coordinates']/np.linalg.norm(galaxy.sub_snap['Coordinates'],axis=1)[:,None]
vrs = np.sum(rhats*galaxy.sub_snap['Velocities'],axis=1)

## let's see what these quantities look like
plt.hist(vrs[disk_mask],bins=np.linspace(-100,100,50))
print()## suppress output for cell

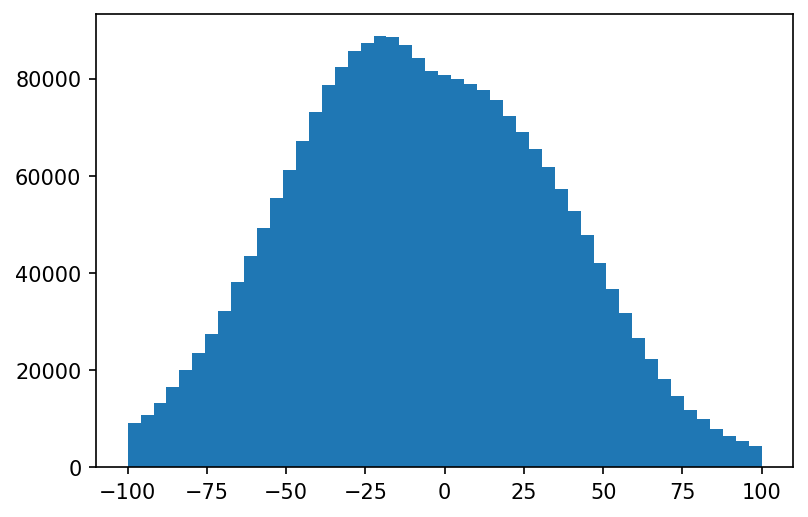

../_images/tutorials_GasStudio_example_29_1.png

Udate the image parameters, first print them to confirm what needs to be changed, then change the ones that don’t match (cbar_label and cbar_logspace).

[16]:

my_gasStudio.print_ImageParams()
my_gasStudio.set_ImageParams(
    cbar_label='$v_r$ (km s$^{-1}$)',
    cbar_logspace=False)

use_colorbar = True
cbar_label = $\Sigma_g$ (Msun pc$^{-2}$)
cbar_logspace = True
frame_half_width = 15
frame_half_thickness = 15
frame_center = [0. 0. 0.]
theta = 0
phi = 0
psi = 0
aspect_ratio = 1
pixels = 1200
figure_label =
scale_bar = True
noaxis = True
savefig = None
fontsize = 12
snapdir = None
snapnum = 600
setting cbar_label to user value of: $v_r$ (km s$^{-1}$)
setting cbar_logspace to user value of: False

Make a “1 color” image of radial velocity

[17]:

## compute mass weighted radial velocity.
##  pass vrs in as an array using quantities
pixels = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='vr',
    quantities=vrs,
    min_quantity =-100,
    max_quantity= 100,
    cmap='Spectral')

cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta0.00_phi0.00_psi0.00_aspect1.00 inner_weight_along_los(GasStudio instance, None, 'Masses', array([-384.33050333, -386.96856607,  -60.82537439, ..., -141.17710656,
       -115.19238739, -101.03451018]), 'vr'){} success!
min_vr =  -100
max_vr =  100
Image range (vr):  -154.47926 159.90678
Image range (8bit):  0.0 255.0

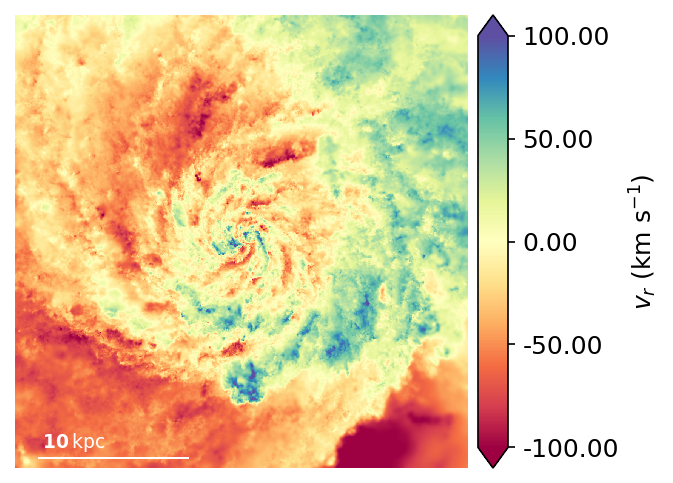

../_images/tutorials_GasStudio_example_33_1.png

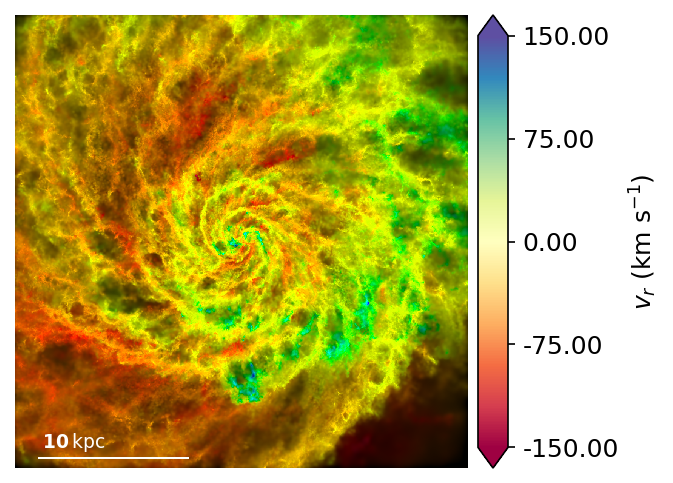

Make a 2-color image of the radial velocity

Plotting two color images

[18]:

pixels = my_gasStudio.render(
    weight_name='Masses',
    quantity_name='vr',
    quantities=vrs,
    min_quantity =-150,
    max_quantity= 150,
    cmap='Spectral',
    min_weight=-0.5,
    max_weight=1.8,
    weight_adjustment_function=lambda x: np.log10(x/my_gasStudio.Acell) + 10 - 6) ## msun/pc^2
plt.gcf().set_facecolor('white')

cache npix1200_width30.00kpc_depth15.00kpc_x0.00_y0.00_z0.00_theta0.00_phi0.00_psi0.00_aspect1.00 inner_weight_along_los(GasStudio instance, None, 'Masses', array([-384.33050333, -386.96856607,  -60.82537439, ..., -141.17710656,
       -115.19238739, -101.03451018]), 'vr'){} success!
min_Masses =  -0.5
max_Masses =  1.8
Image range (Masses):  -0.965189 3.096508
Image range (8bit):  0.0 255.0
min_vr =  -150
max_vr =  150
Image range (vr):  -154.47926 159.90678
Image range (8bit):  0.0 255.0
TODO:Need to create a 2-axis colorbar.

../_images/tutorials_GasStudio_example_36_1.png
